Low Profile form factor of 74CJ and DCP100 Series with ability to use any 20 mil disposable probe.
Excellent for applications that require the following:
Excellent for applications that require the following:
- Low current probing with probes made from BeCu, Paliney® 7 and plated materials.
- Thermal applications where gold plated BeCu or Paliney® 7 probes would withstand higher temperatures without oxidizing.
- Allowing a cost effective method of using inexpensive probes when your application does not require the high performance coax probes.
- Several probe angles to choose from (45, 60, and 90 degrees).
- Probe fastening using jam nut, open and closed friction lock, gold plated pin jack.
- Optional ground return fastening point within body. This allow a anchor point to connect a ground wire without damaging the SSMC connector.

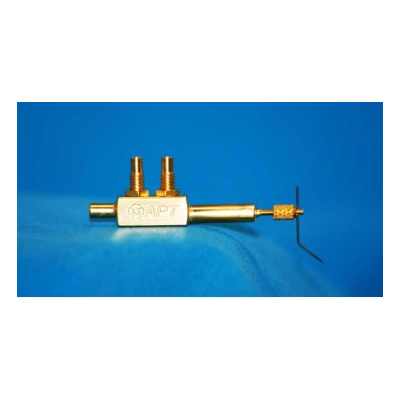

An example of this is pictured to the right on the 74PJA probe holder. - Longer lengths of probe extension available to choose from, if your using with another brand of prober where this form-factor is too short.
