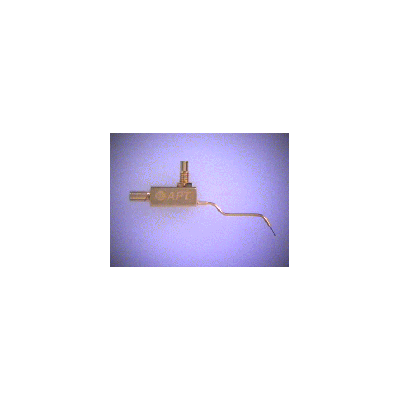

Features
Low Current Design.
Frequency range DC to 500 MHz.
Can be ordered with ground plane probe (*additional charge).
Standard .125" mounting shank.
Adapts easily to most probe systems.
Specifications
Mounting shank: .125".
Fully shielded to within .1" of device contact.
Semi-rigid coax: 0.34" OD with Teflon insulator.
Conductor made from .008" tungsten wire etched to point.
Connector is SSMC type.
(*May be ordered to custom shapes)
Also see:
73CT-APTA Series Replaceable Coaxial Probes
72P low contact resistance Paliney Probe
72BEG low contact resistance gold plated BeCu Probe
72F Soft Touch Probe with 1mil tungsten wire
72SPP Spring Pogo Probe with 20 mil OD and rohodium contact
74CJ-APT-KS Low Noise Coaxial Probe Holder with replaceable coax probes
74CJ-APT-KS-SR Low Noise Coaxial Probe Holder with replaceable coax probes & series resistor
73APT-100K-SR Kelvin Probe with Series Resistor
76LPC-SSMC Low Noise Coaxial Cables
86LPC-SSMC Low Noise Triaxial Cable
-
What size probe should I use?
-
The typical recommendation is to use a probe diameter that is half to two thirds the size of the contact. Remember, APT's probes are sold by the radius, so you must double the number to determine the diameter. It is normally found that a radius larger than 20 microns does not yield lower contact resistance. An example is: The contact pad is 10 microns, using the recommendation, you would then use a probe with a radius of 2.5 - 3.5 microns. (5- 7 micron diameter)
Please refer to this section for American Probe & Technologies cross reference to other manufactures model numbers.
Cascade Part Number |
Equivalent APT Model Number |
| 26728 | 73CMI-100/50 |
