PCW-110

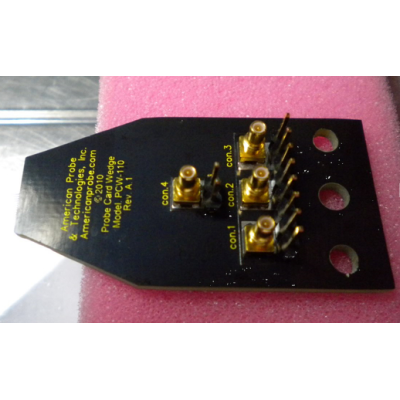

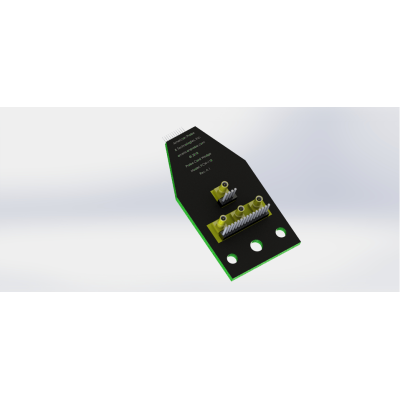

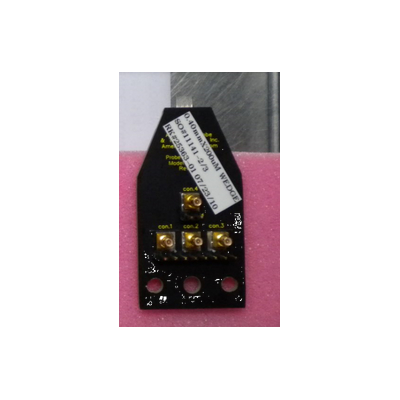

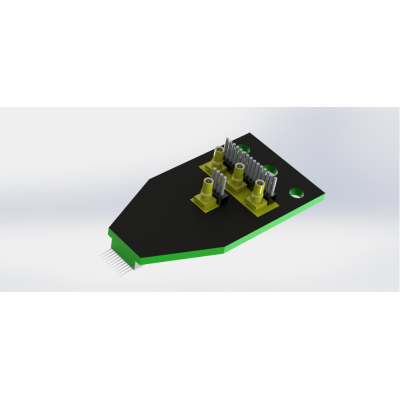

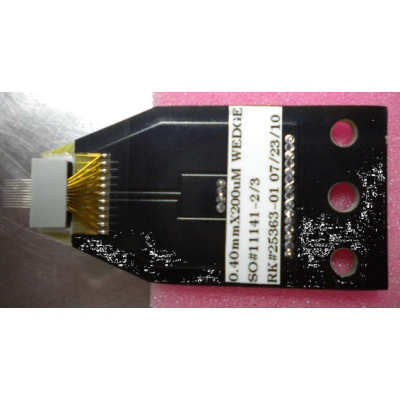

This particular wedge probe was designed for solar cell characterization.  The target resistance was 20 mill ohms, and to include one Kelvin sense probe within the array.

The wedge probe was designed to be mounted onto a standard RF mount with theta adjustments.

The contact probes were Paliney 7, in an array of 9 force contacts.

The physical shape was of a custom size and length per the customers’ requirements and needs.

The customer wanted the ability to use 3 SSMB connectors as well as parallel IDC strip line contacts for connections

Although this exact wedge probe may not meet your application, it will provide an example of the type of products that can be designed and manufactured by American Probe & Technologies.

Please contact sales for additional information.
