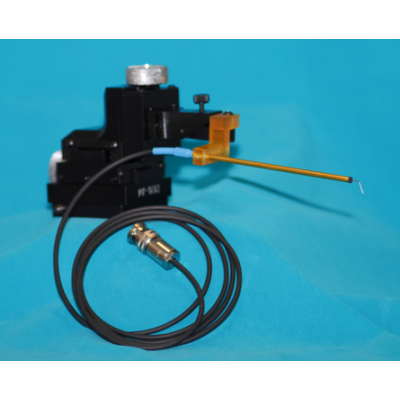

The low profile, straight triaxial probe holder with piviot mount, shown on American Probe & Technologies LP600 micropositioner.
The in-line / low porfile probe mounting pin jack requires pre-bend probes that can be ordered from APT in the 72T series as well as the 72A, 72S, 72X series. Please contact APT for further information. These pre-bend probe could rotate within the in-line/ low profile probe mounting if too much force is exerted.
The assembly comes complete with an intergrated mini low noise traixial cable terminated into a standard three lug triaxial BNC connector. Please specify the cable length desired, the price noted is for a length of up to 1 meter. The probe pin jack is designed for a 20 mil probe shank.
There is a wide veriety of mounting options and available probe holder lengths. This series can also be ordered with custom bends if needed.
